STEELWEAVE™ METAL MESH GRILLE
Security Grilles
Model Number: EAG 10
DECORATIVE SECURITY GRILLE
Elegant design does not have to be compromised to achieve security. Our SteelWeave metal mesh grille features a tightly woven type 316 stainless steel curtain that enhances a buildings design while keeping it secure.
It is offered in three models, that are sure to meet all of your design needs:
Aesthetic Conceal (EAG10V) – Ideal for hospitality and high-end retail applications where appearance is priority, This model also has fastenerless stainless steel guides and bottom bar for a polished look.
Aesthetic Conceal (EAG10C) – Ideal for hospitality and high-end retail applications where appearance is priority. This model features aluminum guides that are intended to be buried in the wall with a stainless steel bottom bar that will be visible.
Service (EAG10S) – Ideal for utilitarian applications that want the cost savings of an aluminum guide and bottom bar, but desire the tight weave to maintain airflow and keep our small trespassers.
The three models are completely customizable to meet the needs of any application. SteelWeave™ Metal Mesh Grille is available in two standard curtain designs and three special order curtain designs – to ensure that we offer something that goes with your existing design. We also offer etching on the Lago curtain design, allowing a logo or branding to be displayed.
The SteelWeave metal mesh grille is ideal for restaurants, bars, high end storefronts and malls that desire an elegant closure that provides security and visibility.
Sizes
Standard construction for Tigris curtain up to 25′ wide by 20′ high.
Standard construction for Lago curtain up to 19′ wide by 20′ high.
If you need a larger size or other curtain options, please contact us.
Usage
The SteelWeave™ Metal Mesh Grille is constructed for daily use with a 50k lifetime usage of the grille. The daily cycle usage is dependent on the operator.
Materials and Finishes
Standard materials and finishes are based on the model that is chosen. Check out the feature sheet for the materials and finishes by model.

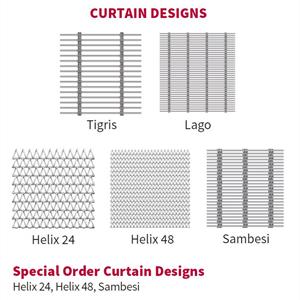

SteelWeave™ Metal Mesh Aesthetics
SteelWeave™ Metal Mesh is extremely customizable. With two standard curtain designs and three special order curtain designs we are sure to offer something that goes with your existing design scheme. In addition to these 5 curtain designs, we also offer etching which will allow you to display your logo, branding or any design you would like.
SteelWeave™ Metal Mesh Grille Curtain Construction
SteelWeave™ Metal Mesh Grille Safety & Protection
Locking mechanism is an available option.
Drawing Generator
While the drawing generator is not available for this product, please contact our ADS department for drawings and technical details.
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
See Codes and Listings page for detailed information.
